Broadcast encoders, decoders and SRT contribution codecs

Portable Codec

The venue link, in one small box. Programme home over the internet, return feed back to SDI.

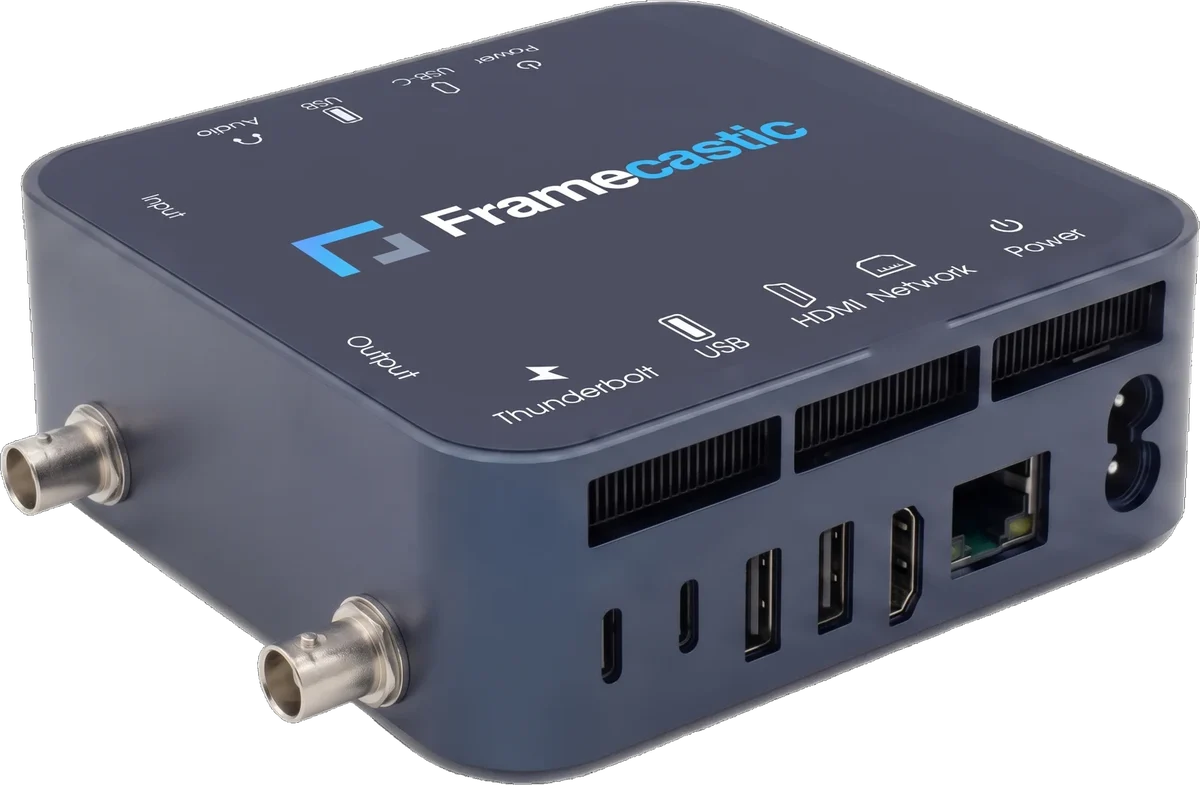

Portable Codec, a small box with SDI input and output on the side and Framecastic on the lid
1 in + 1 outSDI, at the same time
4:2:2 10-bitHEVC, both ways
~10 Wat the wall, measured

Sixteen channels.
One rack unit.

Encoders for SDI, ST 2110 and HDMI, and decoders back to SDI and ST 2110. Half-depth servers, hardware encode on Intel GPUs.

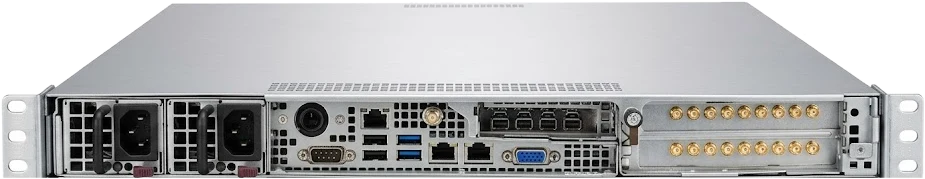

SDI Encoder, a 1 RU server with sixteen BNC connectors
16 × 1080p50encoded in 1 RU
16 × 3G-SDIdecoded out
ST 2022-7protection on the ST 2110 encoder

Four or eight SDI.
Any mix.

Every channel an encoder or a decoder, in a desktop chassis. For the room that needs a few channels and has nowhere to put a rack.

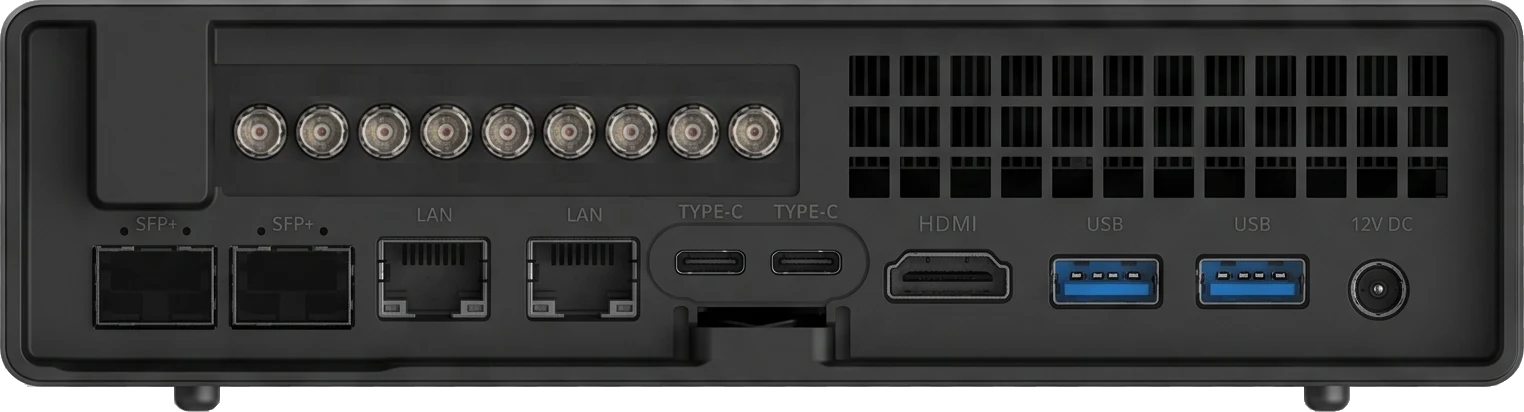

Compact SDI Codec, rear panel with eight BNC connectors, SFP+ and LAN ports
4 or 8SDI channels
SRT and RISTcaller or listener
No rackdesktop chassis

Every screen
in the building.

The IPTV server holds the line-up and hands it to set-top boxes, phones and browsers. The transcoder turns it into an OTT ladder.

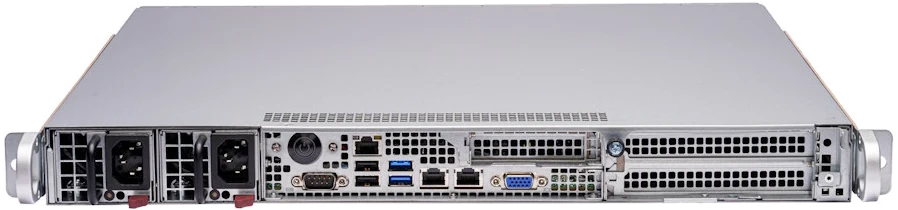

IPTV Server, a 1 RU server Set-Top Box with two HDMI outputs
100+channels per server
2 × 4KHDMI out per box
72channels per transcoder server

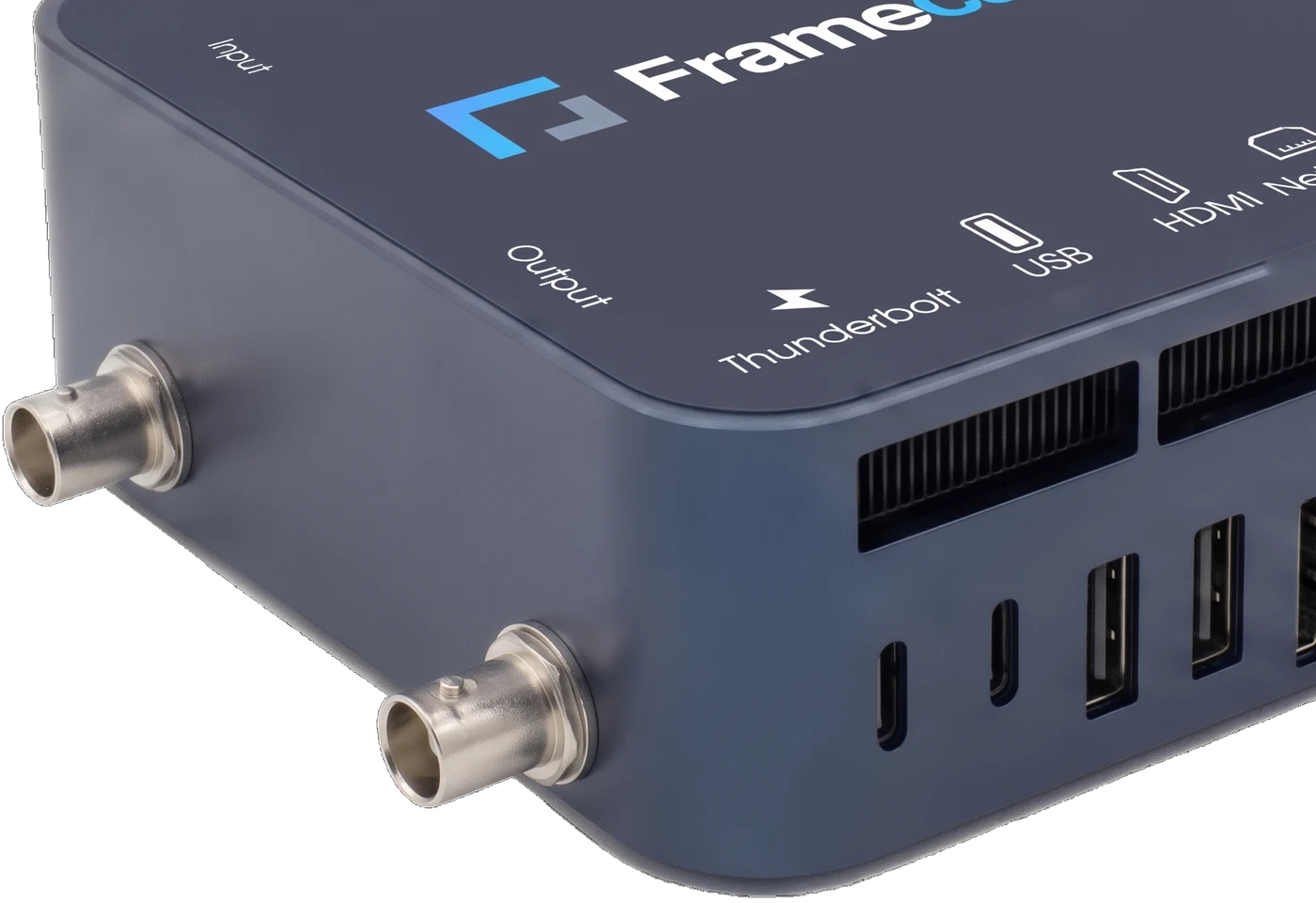

Close-up of the Portable Codec: two BNC connectors and the Framecastic lid

Designed, coded and built in Zagreb.

Every unit is designed, programmed and validated in Zagreb before it ships. The people who answer your call are the people who wrote the code.

Krešimir Puljić and Mario DrevenšekFounders, working together since 2008

Meet the founders

On air today.

Not a roadmap. Units running in production now.

REMI
Nova TV, Croatia

The first Croatian commercial broadcaster with a national licence, on air since 2000. Its cameras go home from location over SRT through our Portable Codec, and the on-air return comes back on SDI in the same box.

26 channels
Alatir, Zagreb

A playout centre broadcasting 26 channels to cable and IPTV operators in Croatia. Sixteen of them are encoded in one half-depth SDI Encoder, each delivered with the service name, provider and audio languages the operator’s headend expects.

16 channels
Muzzik Televizija

Sixteen music channels across world and regional popular music, on television and online, going out through Framecastic encoding.

Launching soon
2 to 4 channels
IPTV Supervizija, Zagreb

A new Zagreb television production company, starting with two to four channels on Framecastic.

Broadcast-ready.

Our streams are checked the way the operator who receives them checks them: on broadcast-grade stream analysers.

Checked to TR 101 290

Streams are verified against ETSI TR 101 290 Priority 1 and 2, the checks an operator’s headend runs on every channel it takes in.

Labelled for the headend

Every channel carries its own DVB service name and provider, and every audio track its language, so it arrives as the channel it is.

Sized for the network

Seven transport packets per datagram, never split and never fragmented, and an optional output paced on its clock reference for links that want an even rate.

Measured, not assumed

Soak tests of half an hour per format count every picture and every continuity counter, and every release is tested on the box it ships on.

Bought once.
Yours for good.

Our own design and our own code, on standard hardware, from a small European vendor.

Our own stack

A feature you need is a conversation with the engineers who built it, not a place on someone else's roadmap.

More per rack unit

Sixteen channels in one half-depth box, and a field codec small enough to travel.

Hardware or software

Finished units, the same software on servers you already own, or white labelled under your name.

Buy once

Perpetual licences. An optional annual SLA covers support and updates.

Web UI and REST API on every unit HTTPS login, hashed passwords Remote support over WireGuard 2 years hardware warranty, 1 year of updates

Help me choose.

Every unit speaks MPEG-TS over IP, so they fit together in any order.

UnitInOutWhere it fits
Portable CodecTour1 × SDI + IPIP + 1 × SDIField contribution and remote production, with the return feed on the same box
Compact SDI Codec4 or 8 × SDI / IPIP / SDI, any mixA few channels where there is no rack
SDI Encoder16 × SDIMPEG-TS over IPThe plant is SDI, distribution is IP
ST 2110 Encoder16 × ST 2110MPEG-TS over IPThe plant has moved to uncompressed IP
HDMI Encoder8 × HDMIMPEG-TS over IPSources are players and set-top boxes
SDI DecoderTourMPEG-TS over IP16 × 3G-SDIFeeding SDI equipment already installed
ST 2110 DecoderMPEG-TS over IPST 2110-20 / -30Playout, monitoring and disaster recovery on an IP fabric
IPTV ServerTourMPEG-TS over UDP, SRT, RISTMulticast, HTTP-TS, HLS, WebRTCChannels to every screen in a building or campus
Set-Top BoxIPTV streams2 × HDMI, up to 4KScreens, walls and meeting rooms
ABR HLS TranscoderTourMPEG-TS over UDP, SRT, RISTHLS ladder, H.264 / AV1OTT delivery for an operator with its own packager

Try it on your own signals.

  1. Remote access first

    Your engineers get a running unit to look at: the interface, the settings and the output, before anything ships.

  2. A unit on site

    Then a box on your own signals for a couple of weeks, with a written report you keep either way.

  3. Buy the way that suits

    Finished hardware, software on your own servers, or white labelled. Perpetual licences, optional SLA.

Service: stream analysis

Send us a capture. Get a report.

An independent analysis of your MPEG-TS stream: what went wrong, when, and in which PID. EUR 200 per capture of up to one hour, report within one working day.

See it working.

Tell us what goes in and what has to come out, and we will set up remote access to a running unit.

Mario Drevenšek, mario@framecastic.com, presales@framecastic.com, Zagreb, Croatia
